Briidea New Single Outlet Stainless Steel Brushed Nickel Air Switch Kit for Disposal Let You Deal with Sink Garbage easier.
It is a convenient alternative to the traditional wall switch and a perfect fit for most brand or model of garbage disposers(<2HP). Tips: must have AC power below sink.
Also it is connection device as a part of garbage disposal, massage chair, vacuum.
Product guarantee: Full money back guarantee without reason, 2-year warranty and 24-hour support for customer service.
5 easy steps to install
Step 1:

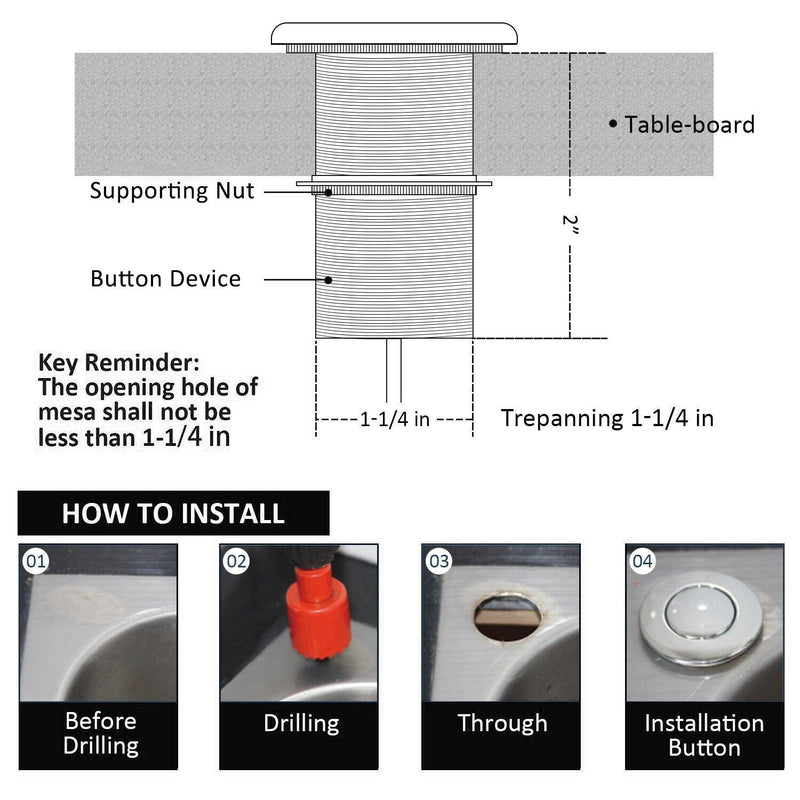

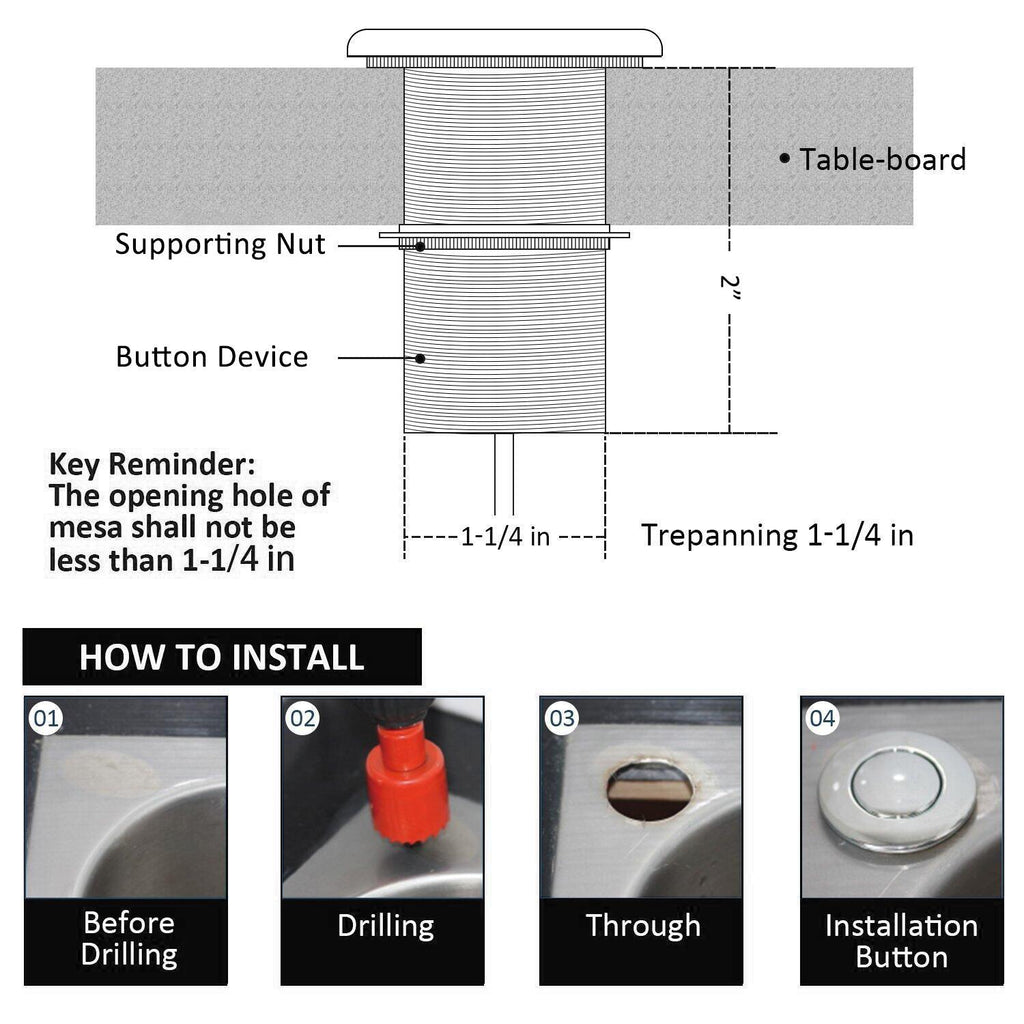

If there is no sink hole, you can mount the push button through the counter top by drilling a hole (not less then 1-1/4 in).
Step 2:
Place the rubber gasket between push button and the top of sink counter. Tighten the plastic nut under the sink counter to ensure a watertight seal.
Step 3:

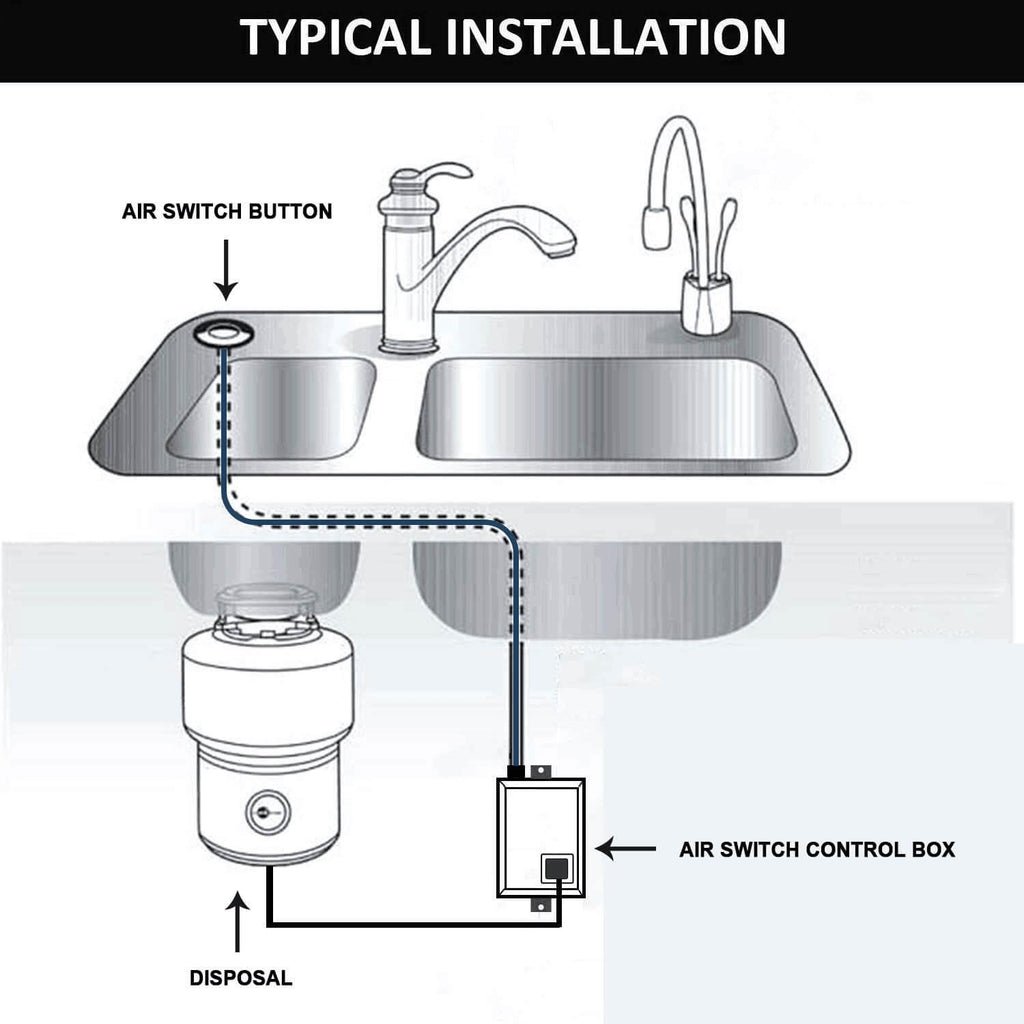

Attach the air tubing between the push button and the control unit. Push the tubing tightly onto the molded protrusions.
Step 4:
Plug the control unit into a dedicated, grounded 120V AC outlet that is continuously powered.
Step 5:
Plug the disposer power cord into the control unit. Press push button to ensure that the countertop switch turns the disposer on and off.
NOTE:

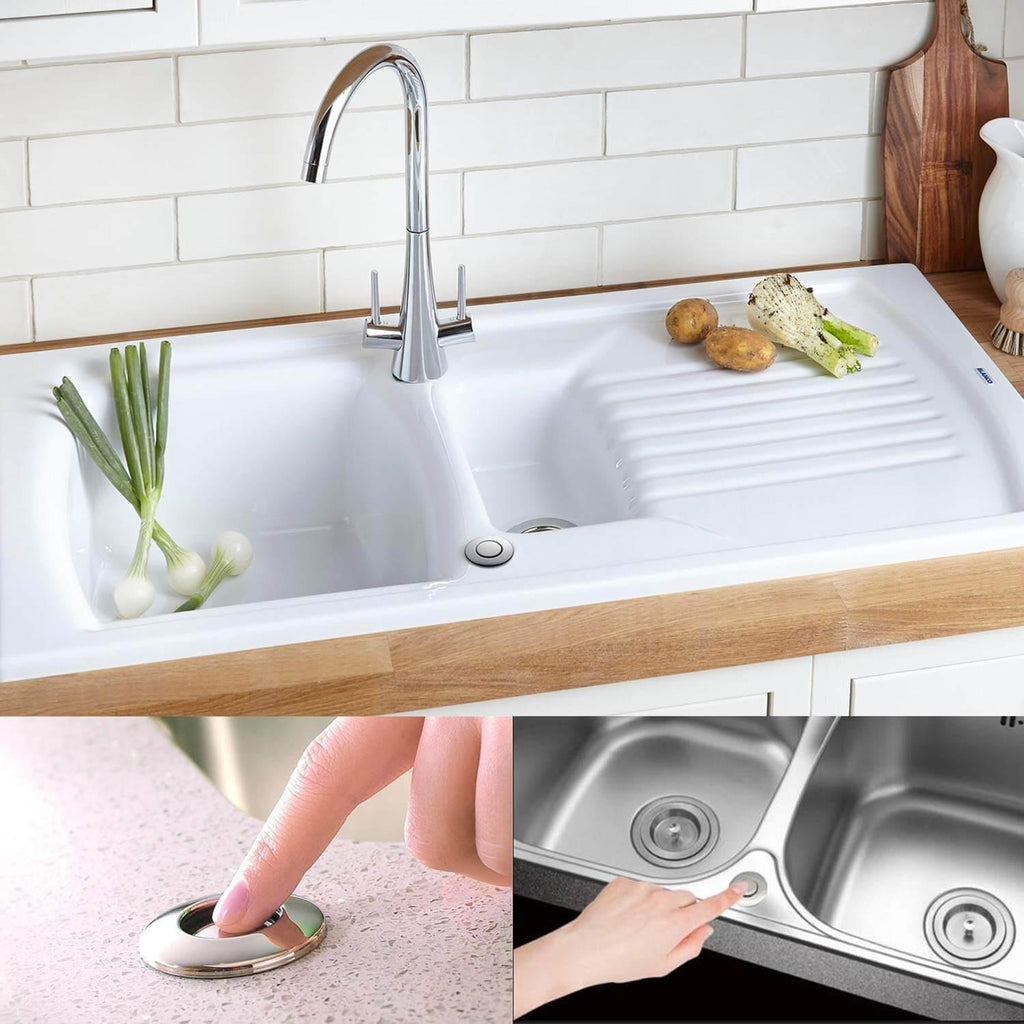

▲Press switch button to turn the disposer on and press again to turn the disposer off.
▲Disposer may start when disposer cord is plugged into the power module. Push the Countertop Switch button once to stop the disposer.
Specifications:
●Working voltage: AV110-240V(50/60Hz)
●Working current: 110V/16A; 220V/10A
●Max power: 2000W
Package Included:

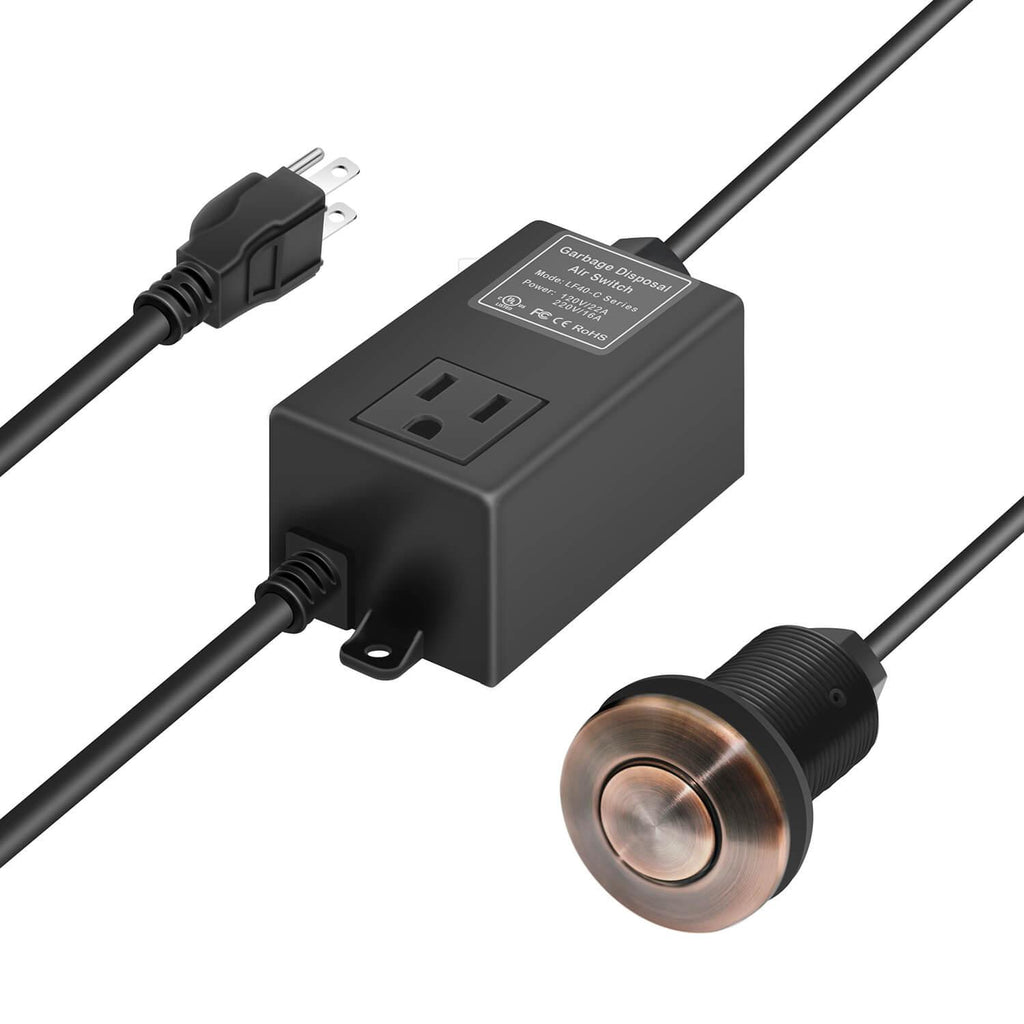

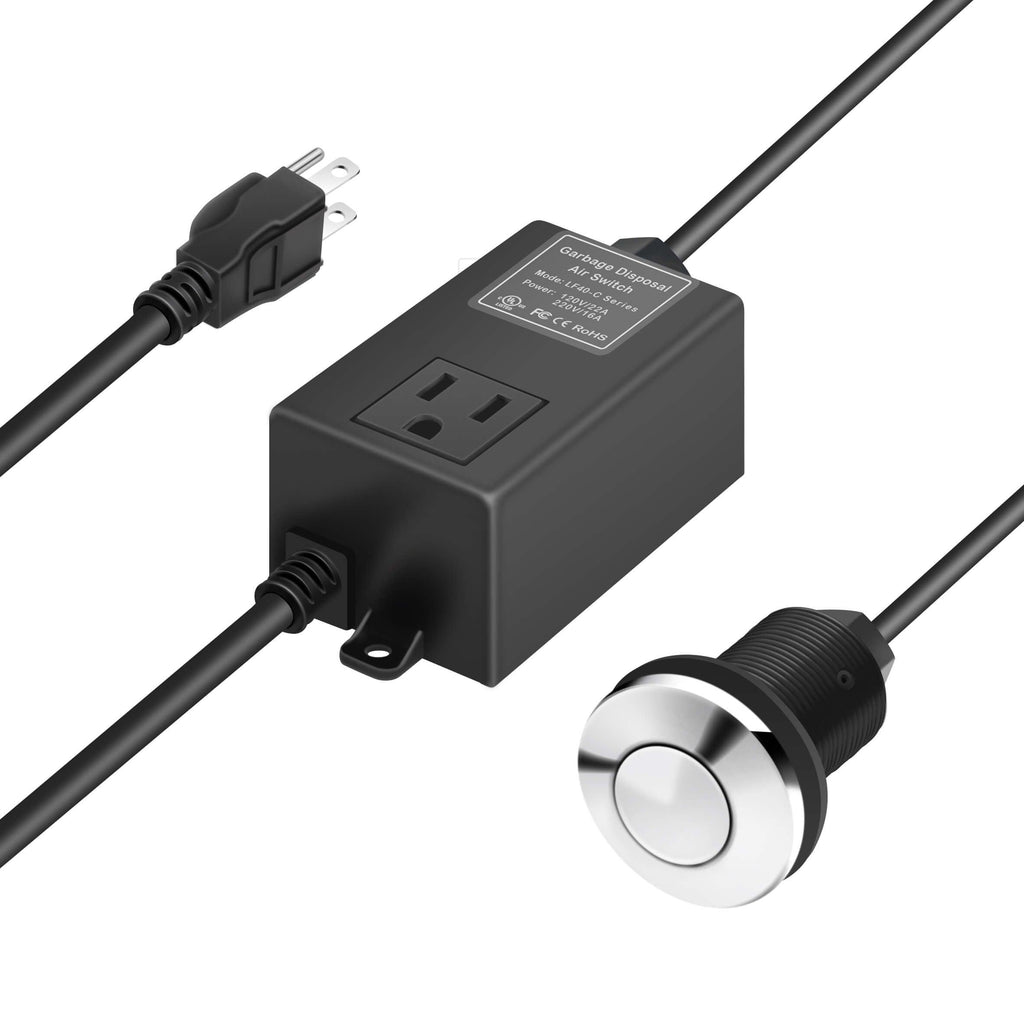

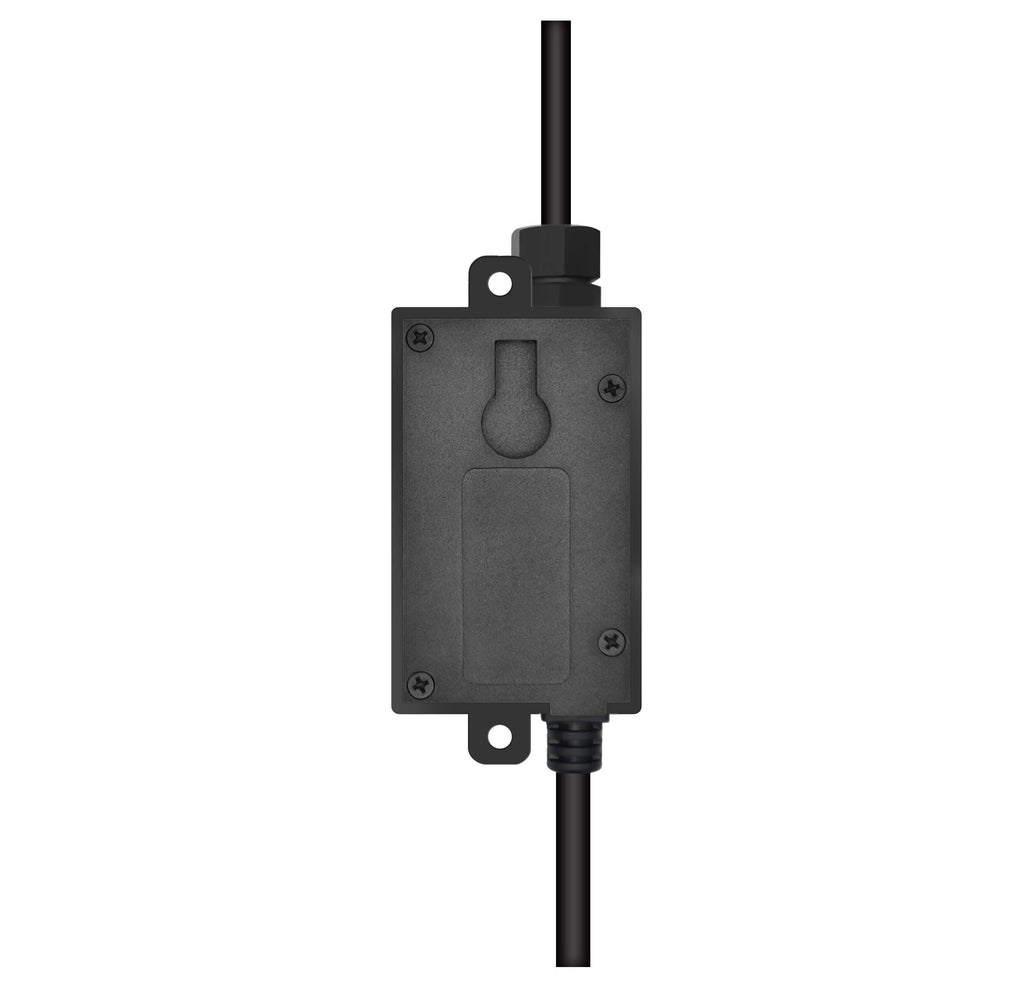

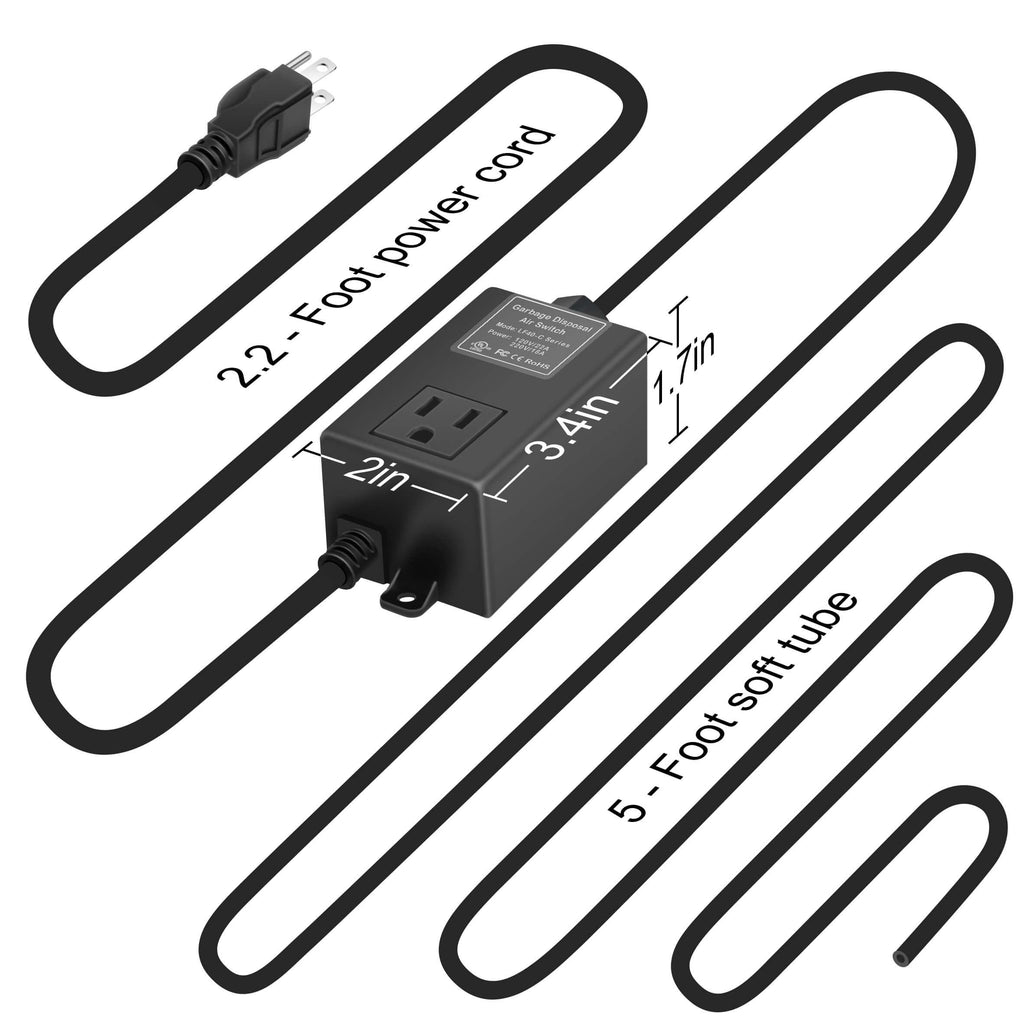

- 1x Single outlet power module

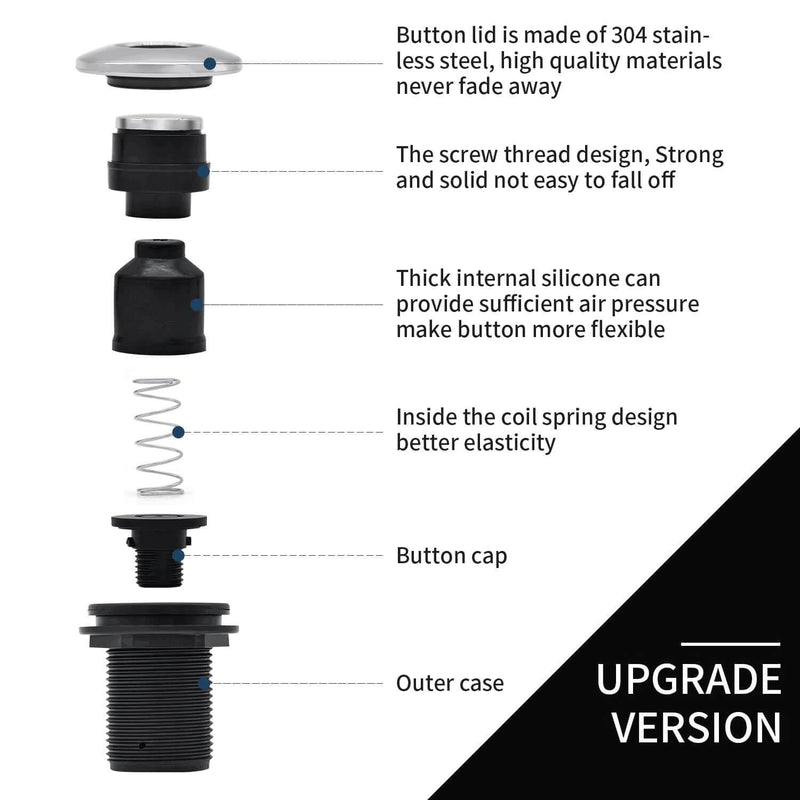

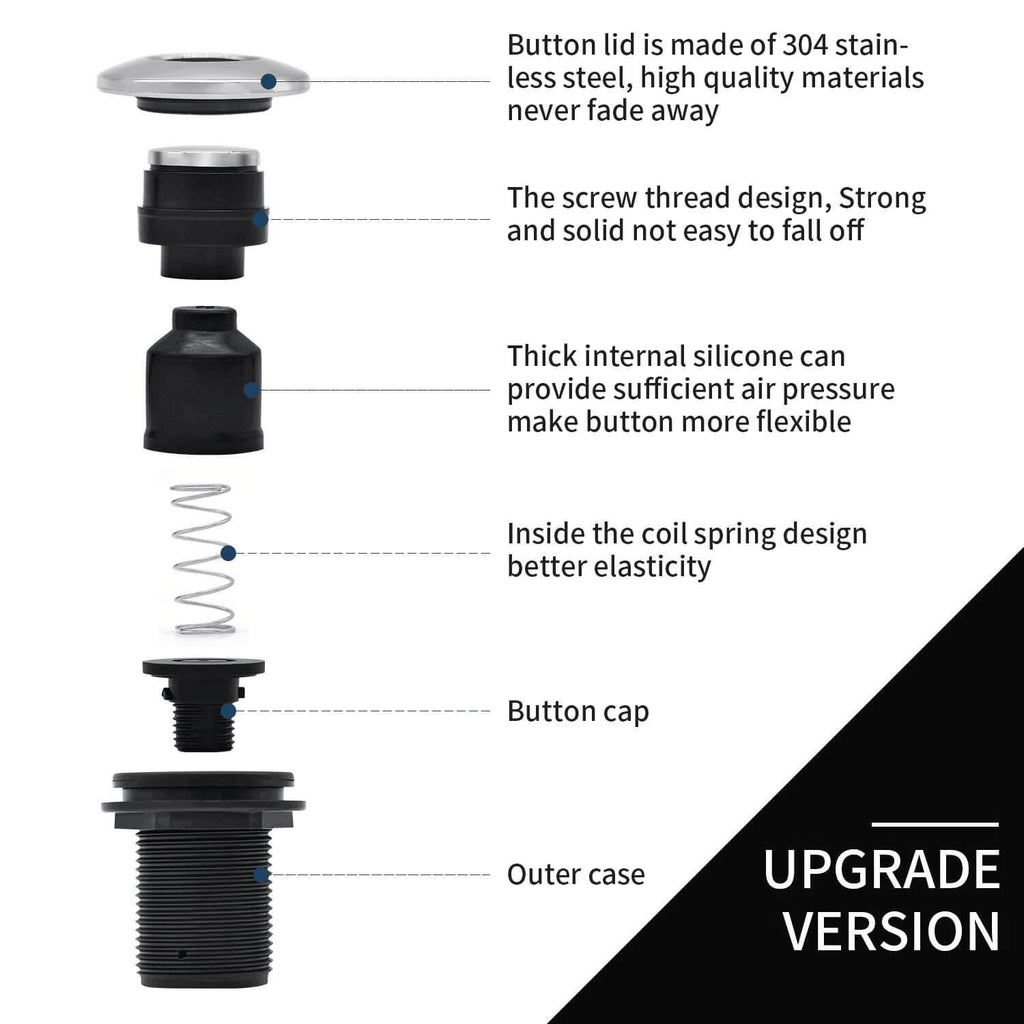

- 1x Long(2"/2.7'') Stainless steel push button
- 1x 1.5m/5ft Soft Tube
- 2x Mounting screws
- 1x Installation instruction
- 1x Strong nano-markless hook sticker
